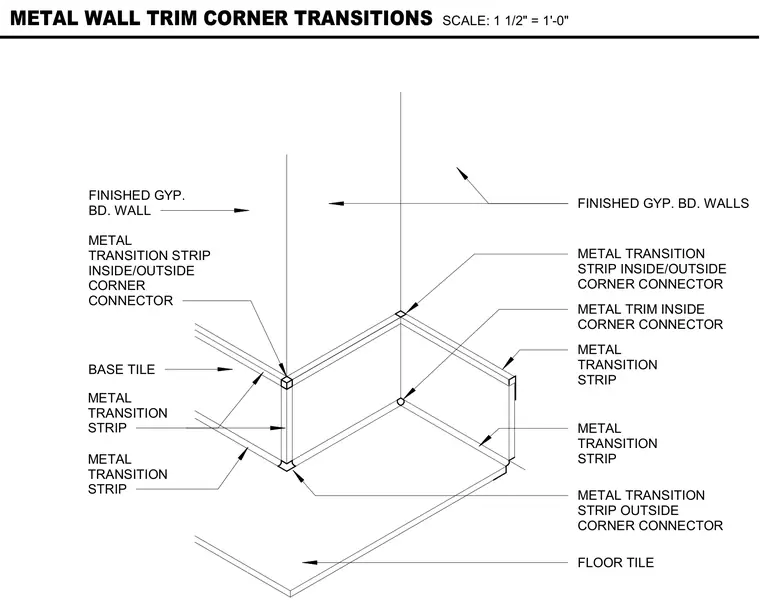

Metal transition strips and corner connectors are detailed for inside and outside wall corners finished with gypsum board and base tile. The assembly incorporates metal trim components to provide clean junctions between vertical wall surfaces and floor tile layouts. Specific connectors accommodate both inside and outside corner conditions for the metal trim profiles. Finished gypsum board walls interface directly with the metal transition profiles.
METAL TRIM INSIDE CORNER CONNECTOR METAL TRANSITION STRIP METAL TRANSITION STRIP FLOOR TILE FINISHED GYP. BD. WALLS METAL TRANSITION STRIP OUTSIDE CORNER CONNECTOR METAL TRANSITION STRIP INSIDE/OUTSIDE CORNER CONNECTOR METAL TRANSITION STRIP METAL TRANSITION STRIP BASE TILE METAL TRANSITION STRIP INSIDE/OUTSIDE CORNER CONNECTOR FINISHED GYP. BD. WALL METAL WALL TRIM CORNER TRANSITIONS SCALE: 1 1/2" = 1'-0"
