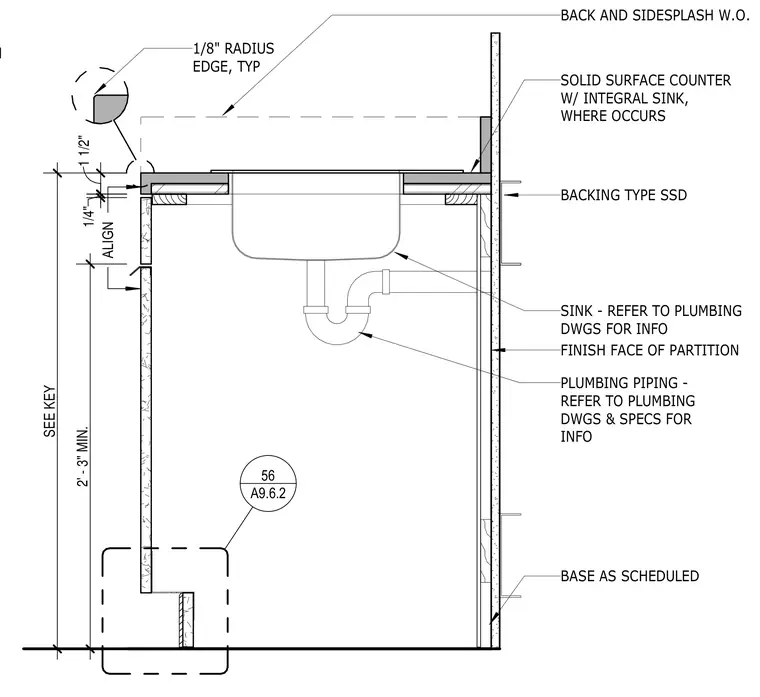

A solid surface counter with an integral sink rests on a millwork sink cabinet with a one-eighth-inch typical edge radius. Back and sidesplashes coordinate with the counter assembly, and backing type SSD is provided at the partition. Plumbing piping and sink rough-ins are coordinated per plumbing drawings and specifications. The cabinet features a base as scheduled along the finished face of the partition with a minimum two-foot three-inch height to the counter.
WHERE ADJOINING OTHER CONSTRUCTION A9.6.2 56 FINISH FACE OF PARTITION SINK - REFER TO PLUMBING DWGS FOR INFO PLUMBING PIPING - REFER TO PLUMBING DWGS & SPECS FOR INFO BACKING TYPE SSD BASE AS SCHEDULED 1 1/2" SEE KEY SOLID SURFACE COUNTER W/ INTEGRAL SINK, WHERE OCCURS 1/8" RADIUS EDGE, TYP BACK AND SIDESPLASH W.O. 1/4" ALIGN 2' - 3" MIN.
