About this detail

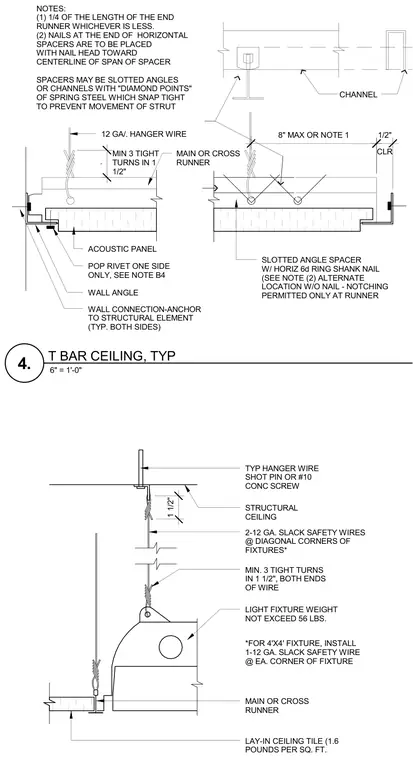

Suspended acoustical tile ceiling system anchored to a structural ceiling with twelve-gauge hanger wires and a shot pin or number ten concrete screw. Main or cross runners support lay-in ceiling tiles weighing one point six pounds per square foot, tied into perimeter wall angles anchored to structural elements on both sides. Slotted angle spacers with horizontal six-penny ring shank nails maintain runner spacing, while light fixtures weighing up to fifty-six pounds include slack safety wires at diagonal corners with a minimum of three tight turns in one and a half inches.
