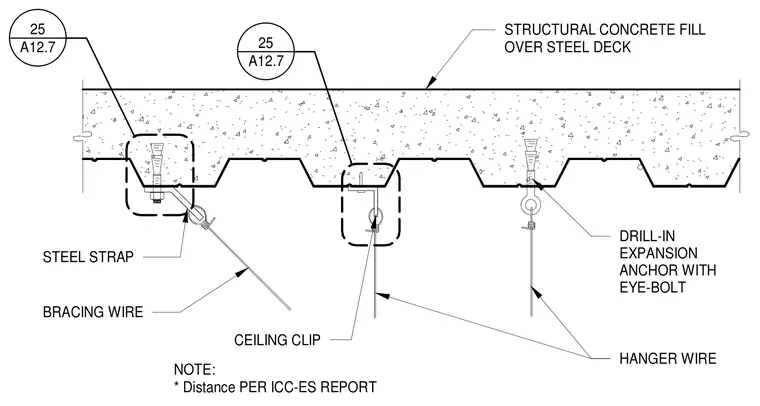

Hanger wires and bracing wires attach to structural concrete fill over a steel deck using drill-in expansion anchors with eye-bolts. A steel strap provides seismic bracing tied to the wire hanger, while direct ceiling clips connect hanger wires to the underside of the deck ribs. Spacing distances adhere strictly to ICC-ES report specifications.
STEEL STRAP BRACING WIRE NOTE: * Distance PER ICC-ES REPORT CEILING CLIP DRILL-IN EXPANSION ANCHOR WITH EYE-BOLT HANGER WIRE STRUCTURAL CONCRETE FILL OVER STEEL DECK A12.7 25 A12.7 25
