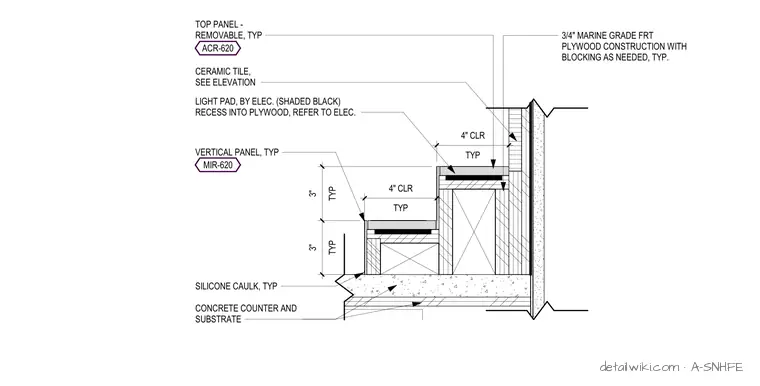

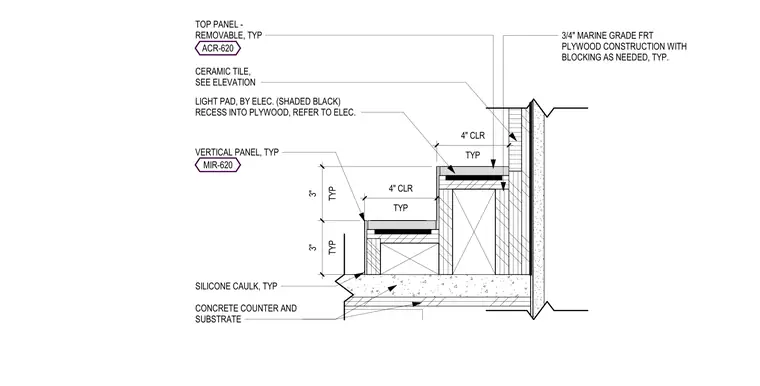

This tiered display assembly is constructed from three-quarter-inch marine grade fire-retardant treated plywood with blocking as required. The structure features removable top panels and vertical panels, with ceramic tile finishes applied as indicated on the elevations. Each tier incorporates a light pad, shaded black, which is recessed into the plywood substrate per electrical drawings. The assembly sits atop a concrete counter and substrate, with silicone caulk applied at the base of the vertical panels. The tiers are spaced at three-inch vertical increments with four-inch clear horizontal surfaces.
