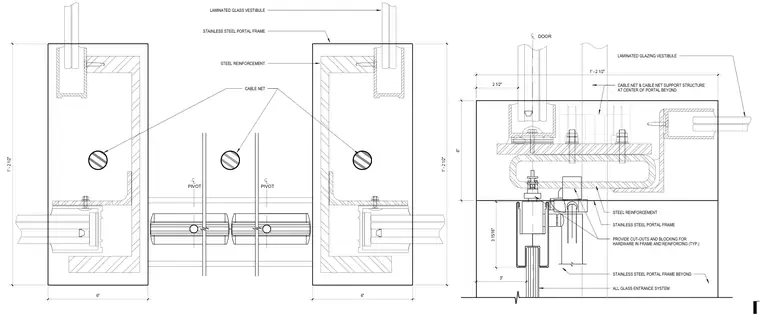

Head assembly for a portal all glass door system, incorporating a stainless steel portal frame with internal steel reinforcement. The frame accommodates a laminated glass vestibule and integrates with a central cable net and cable net support structure. Custom cut-outs and blocking are provided within the frame and reinforcing for hardware attachment. Pivots align with the glass door leaves positioned below the head frame.
PIVOT PIVOT 6" 1' - 2 1/2" 1' - 2 1/2" 6" LAMINATED GLASS VESTIBULE STAINLESS STEEL PORTAL FRAME STEEL REINFORCEMENT CABLE NET DOOR 3 15/16" PROVIDE CUT-OUTS AND BLOCKING FOR HARDWARE IN FRAME AND REINFORCING (TYP.) 2 1/2" 3" STAINLESS STEEL PORTAL FRAME 6" 1' - 2 1/2" STEEL REINFORCEMENT ALL GLASS ENTRANCE SYSTEM STAINLESS STEEL PORTAL FRAME BEYOND CABLE NET & CABLE NET SUPPORT STRUCTURE AT CENTER OF PORTAL BEYOND LAMINATED GLAZING VESTIBULE
