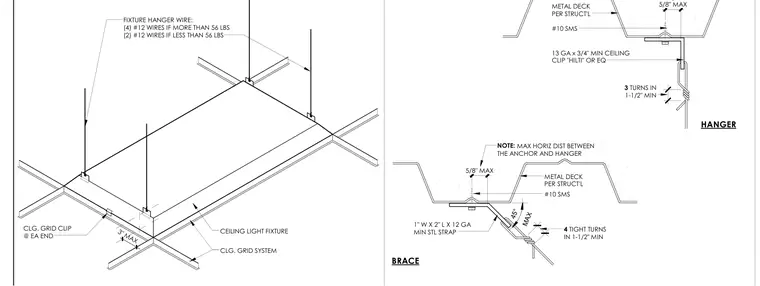

Suspended ceiling light fixtures attach to the overhead metal deck using a minimum thirteen-gauge by three-quarter-inch ceiling clip anchored with a number ten sheet metal screw. Fixture hanger wires consist of four number twelve wires when the fixture weighs more than fifty-six pounds, or two number twelve wires when weighing less than fifty-six pounds. Seismic bracing uses a minimum one-inch wide by two-inch long by twelve-gauge steel strap secured with a number ten sheet metal screw to the metal deck, maintaining a maximum forty-five-degree angle and specific wire twist requirements. The ceiling grid system connects with ceiling grid clips at each end located a maximum of three inches away.
HANGER 13 GA x 3/4" MIN CEILING CLIP "HILTI" OR EQ 5/8" MAX NOTE: MAX HORIZ DIST BETWEEN THE ANCHOR AND HANGER #10 SMS BRACE 1" W X 2" L X 12 GA MIN STL STRAP 4 TIGHT TURNS IN 1-1/2" MIN METAL DECK PER STRUCT'L 5/8" MAX MAX 45° #10 SMS METAL DECK PER STRUCT'L 3 TURNS IN 1-1/2" MIN FIXTURE HANGER WIRE: (4) #12 WIRES IF MORE THAN 56 LBS (2) #12 WIRES IF LESS THAN 56 LBS CEILING LIGHT FIXTURE CLG. GRID SYSTEM CLG. GRID CLIP @ EA END 3" MAX
