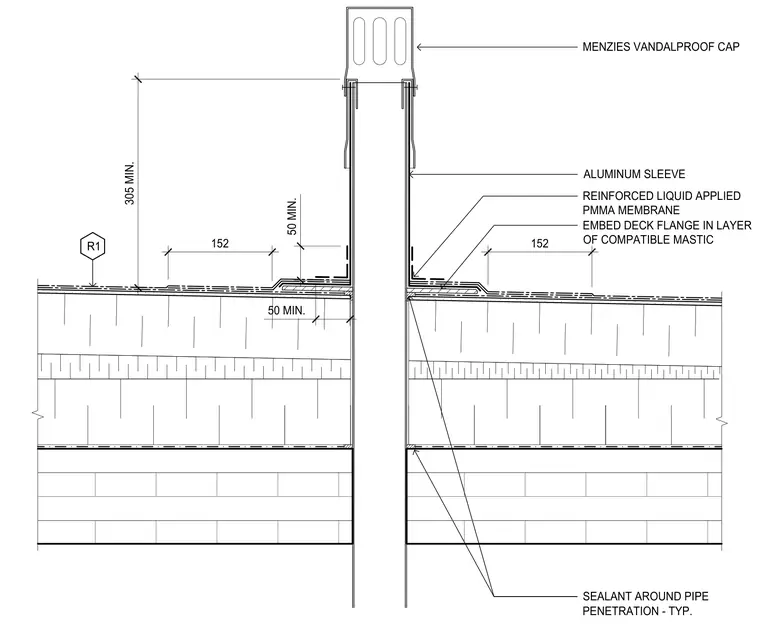

An aluminum sleeve passes through the roof assembly and is integrated with a reinforced liquid applied polymethyl methacrylate membrane. The deck flange of the sleeve is embedded in a layer of compatible mastic sealant around the pipe penetration. A vandalproof cap sits atop the sleeve, positioned at a minimum of three hundred five millimeters above the roof surface. Sealant is applied around the pipe penetration typically at the base of the sleeve.
152 152 305 MIN. MENZIES VANDALPROOF CAP ALUMINUM SLEEVE REINFORCED LIQUID APPLIED PMMA MEMBRANE EMBED DECK FLANGE IN LAYER OF COMPATIBLE MASTIC SEALANT AROUND PIPE PENETRATION - TYP. 50 MIN. 50 MIN. R1
