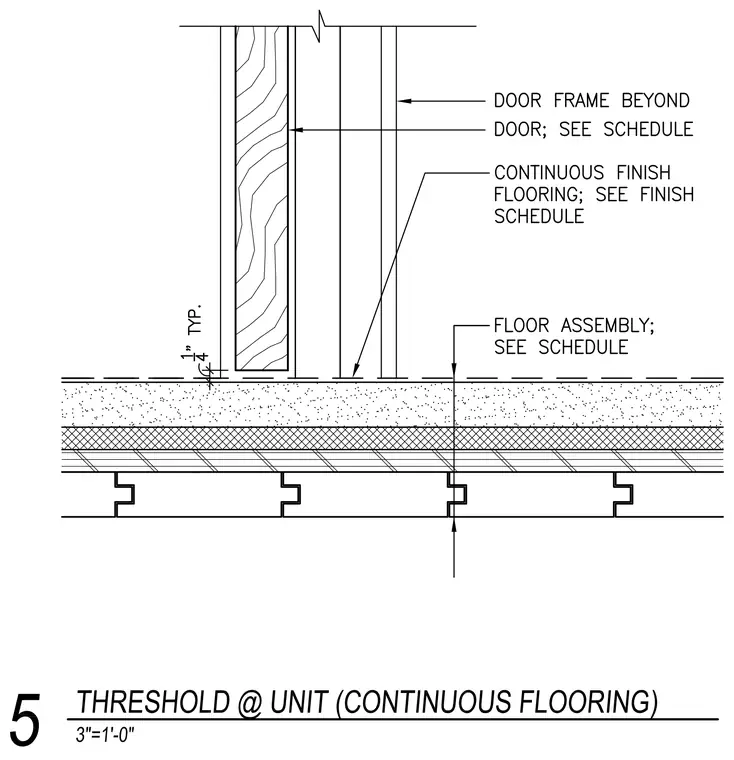

An interior door threshold condition where continuous finish flooring extends underneath the door panel. The wood door sits above the floor assembly with a standard one-quarter inch clearance. A door frame is positioned beyond the opening. The layered floor assembly and finish flooring are specified per schedule.
