An aluminum window system is installed adjacent to a concrete tilt-up panel with a two-foot-six-inch rough opening width. Dark bronze break metal is attached to the concrete using polyurethane construction adhesive, with seams provided as required. Break metal terminates under the frame and corner joints are sealed with a compatible sealant.

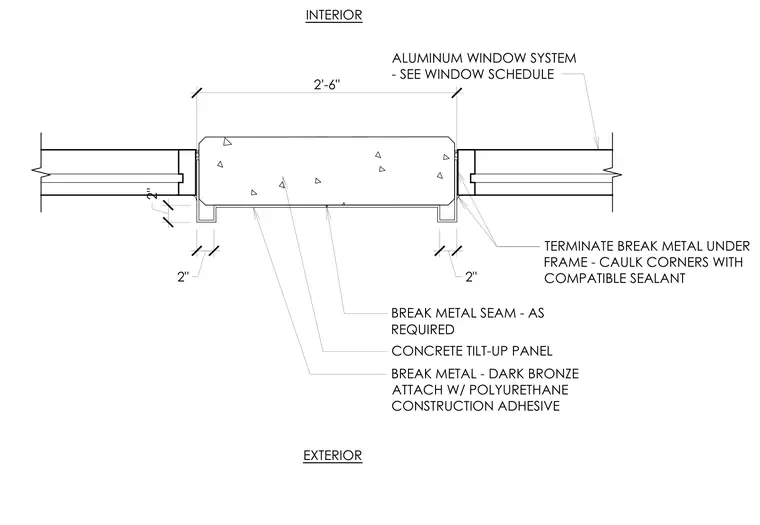

ALUMINUM WINDOW SYSTEM - SEE WINDOW SCHEDULE TERMINATE BREAK METAL UNDER FRAME - CAULK CORNERS WITH COMPATIBLE SEALANT BREAK METAL - DARK BRONZE ATTACH W/ POLYURETHANE CONSTRUCTION ADHESIVE BREAK METAL SEAM - AS REQUIRED 2" 2" 2" CONCRETE TILT-UP PANEL EXTERIOR INTERIOR 2'-6"
