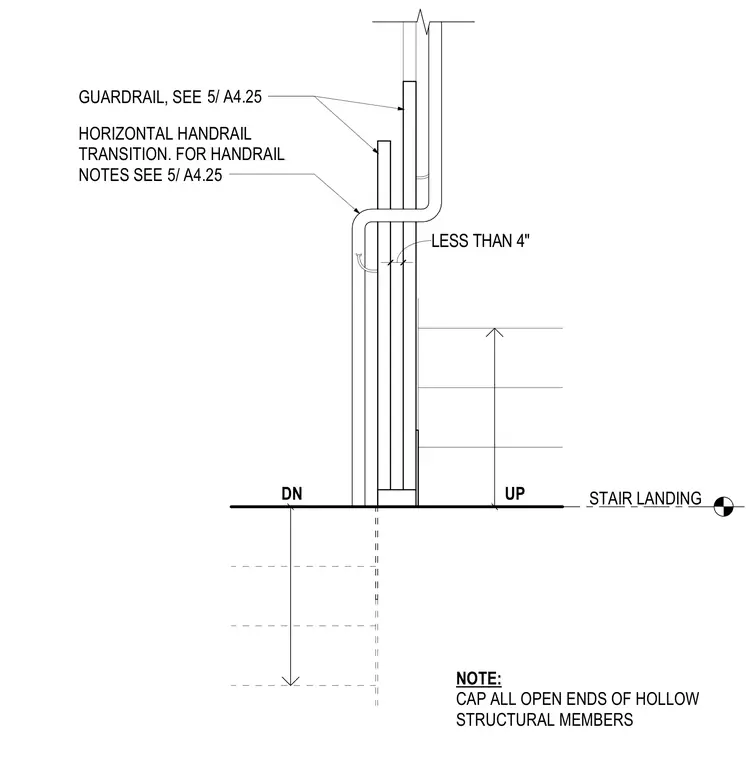

A continuous handrail and guardrail assembly is mounted at a stair landing with an offset tread transition. The guardrail aligns vertically with a referenced detail while the horizontal handrail incorporates a smooth offset transition. All open ends of hollow structural members require capping. Spacing between members maintains a maximum clear opening of less than four inches for safety compliance.
GUARDRAIL, SEE HORIZONTAL HANDRAIL TRANSITION. FOR HANDRAIL NOTES SEE LESS THAN 4" UP DN NOTE: CAP ALL OPEN ENDS OF HOLLOW STRUCTURAL MEMBERS 5/ A4.25 5/ A4.25 STAIR LANDING
