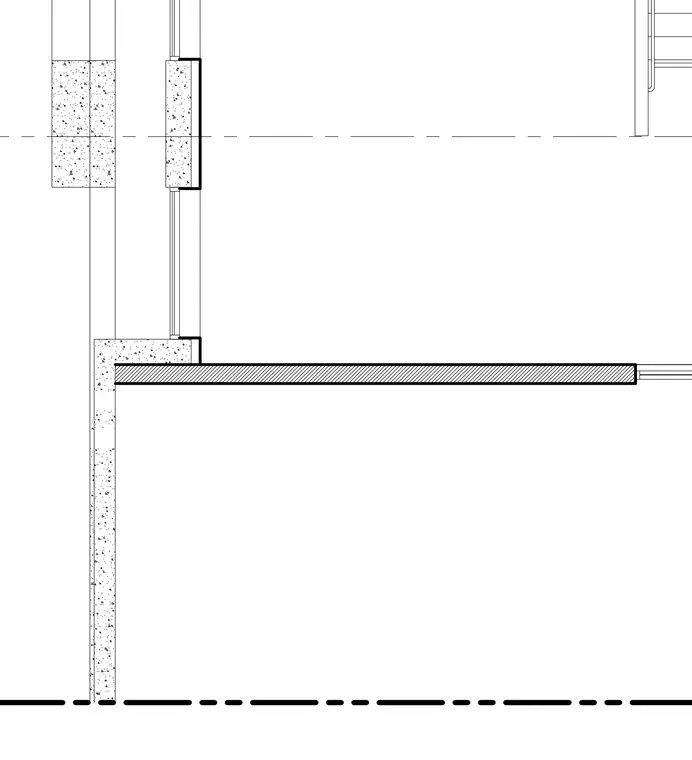

Vertical section transition between a concrete floor slab and an exterior concrete wall assembly. The reinforced concrete slab bears directly onto the exterior wall construction. Above the floor level, a window frame sits aligned with the interior face of the wall assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
