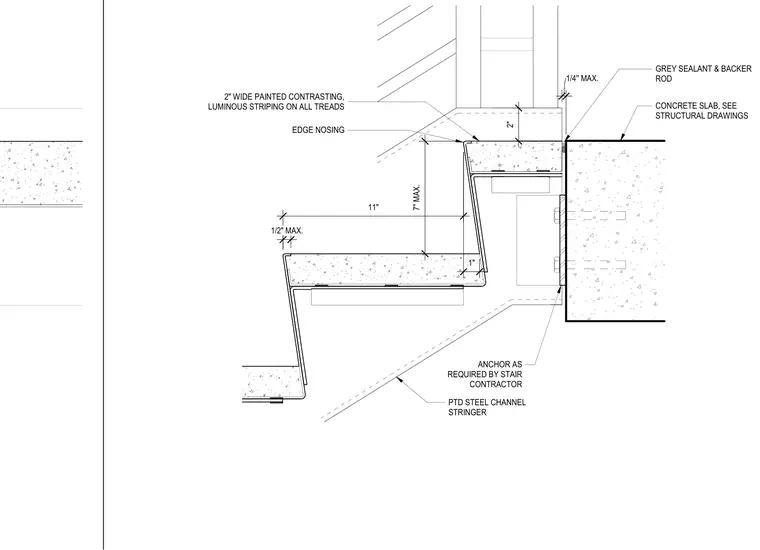

A painted steel channel stringer supports the concrete stair assembly and connects to the structural concrete slab using anchors sized by the stair contractor. A one-quarter-inch maximum joint filled with grey sealant and backer rod separates the stair landing from the slab edge. Treads feature a seven-inch maximum rise, eleven-inch run, one-half-inch nosing projection, and a two-inch wide painted contrasting luminous striping.
CONCRETE SLAB, SEE STRUCTURAL DRAWINGS PTD STEEL CHANNEL STRINGER GREY SEALANT & BACKER ROD 1/4'' MAX. 2" WIDE PAINTED CONTRASTING, LUMINOUS STRIPING ON ALL TREADS EDGE NOSING 7" MAX. 1" 2" 11" 1/2" MAX. ANCHOR AS REQUIRED BY STAIR CONTRACTOR
