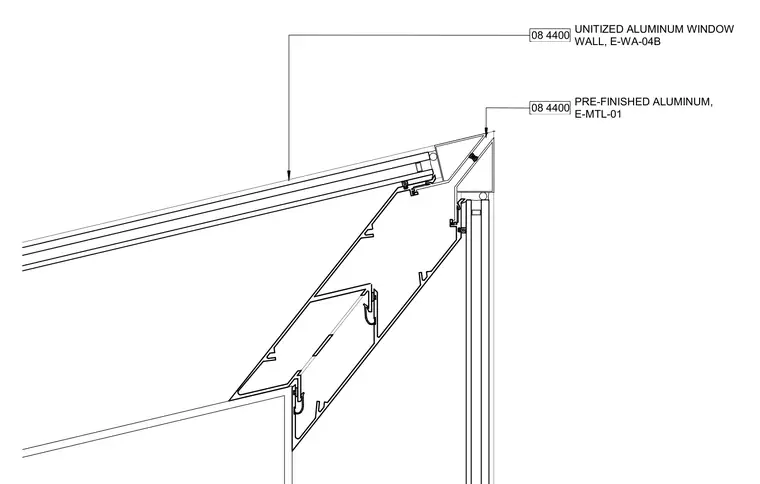

This unitized aluminum window wall assembly features pre-finished aluminum mullions and framing members designed for exterior glazing. The corner configuration incorporates interlocking extruded profiles with gaskets and thermal breaks to maintain weather resistance. The system is specified with designated 08 4400 wall and finish designations.
08 4400 UNITIZED ALUMINUM WINDOW WALL, E-WA-04B 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
