Accessibility mounting height requirements specify a maximum height of forty-eight inches for highest controls, switches, and environmental control devices. The lowest control or outlet is positioned a minimum of fifteen inches above the finished floor, with a maximum height of forty-four inches applied at obstructions twenty to twenty-five inches deep and forty-eight inches max at obstructions up to twenty inches deep. All locations and mounting heights must be confirmed with the electrical drawings.

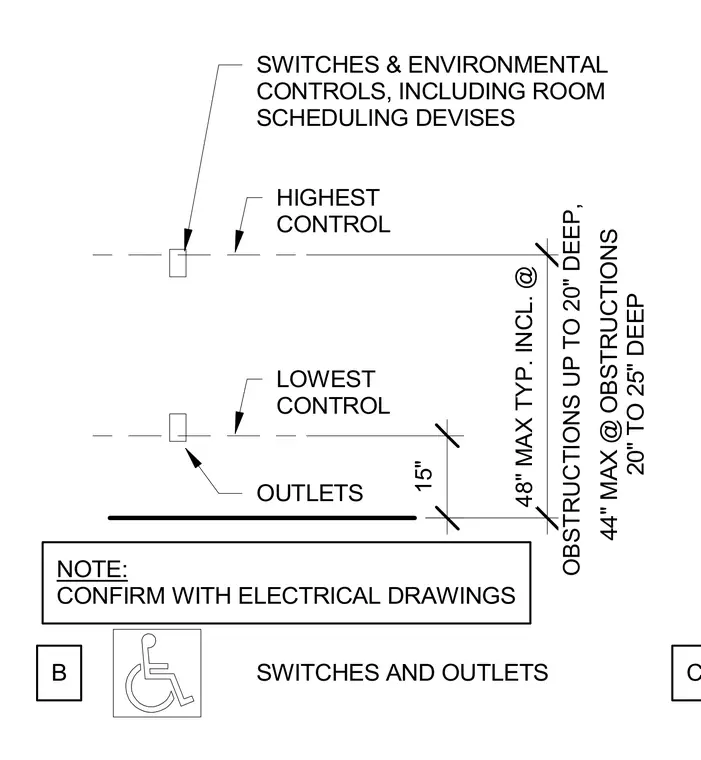

OUTLETS SWITCHES & ENVIRONMENTAL CONTROLS, INCLUDING ROOM SCHEDULING DEVISES SWITCHES AND OUTLETS 15" OBSTRUCTIONS UP TO 20" DEEP, 48" MAX TYP. INCL. @ NOTE: CONFIRM WITH ELECTRICAL DRAWINGS B C HIGHEST CONTROL LOWEST CONTROL 44" MAX @ OBSTRUCTIONS 20" TO 25" DEEP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
