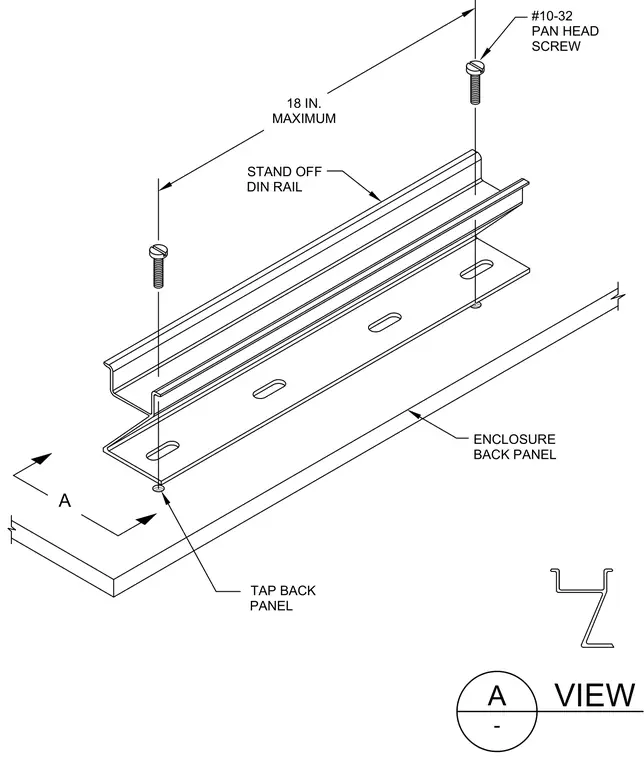

A raised standoff DIN rail mounts directly to an enclosure back panel using number 10-32 pan head screws threaded into tapped holes in the back panel. The mounting spacing is maintained at a maximum of 18 inches. View A-A shows the profile of the formed rail section relative to the flat panel surface.
PAN HEAD SCREW #10-32 ENCLOSURE BACK PANEL STAND OFF DIN RAIL A - A VIEW TAP BACK PANEL 18 IN. MAXIMUM
