Architectural · A-SK6HF

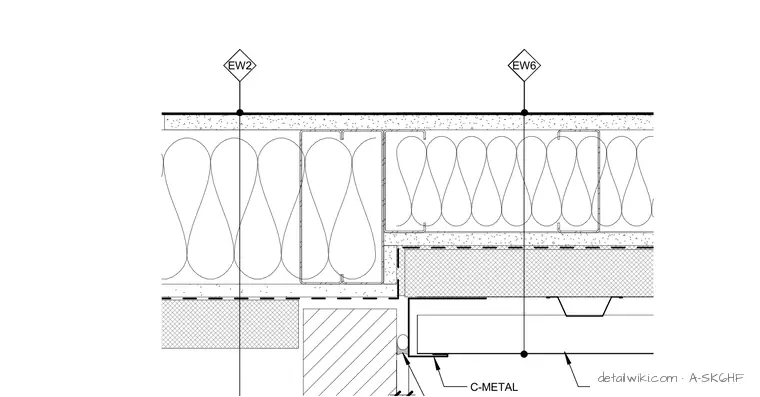

Metal Infill Panel at Brick - Plan Typ.

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.22
Discipline: Architectural

Materials

Aluminum Brick Metal (misc.)

Elements

Expansion / Control Joints Facades / Cladding

Text on the drawing

C-METAL METAL SIDING EW6 EW6 EW2 EW2
