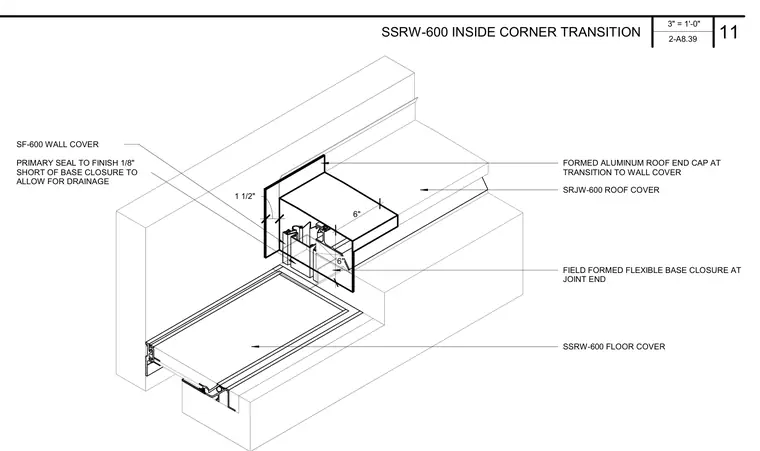

An inside corner transition assembly connects the SRJW-600 roof cover and SF-600 wall cover with a formed aluminum roof end cap. A field formed flexible base closure is installed at the joint end. The primary seal finishes one-eighth inch short of the base closure to allow for drainage.
SRJW-600 ROOF COVER FORMED ALUMINUM ROOF END CAP AT TRANSITION TO WALL COVER FIELD FORMED FLEXIBLE BASE CLOSURE AT JOINT END PRIMARY SEAL TO FINISH 1/8" SHORT OF BASE CLOSURE TO ALLOW FOR DRAINAGE SF-600 WALL COVER SSRW-600 FLOOR COVER 1 1/2" 6" 6" 3" = 1'-0" 2-A8.39 11 SSRW-600 INSIDE CORNER TRANSITION
