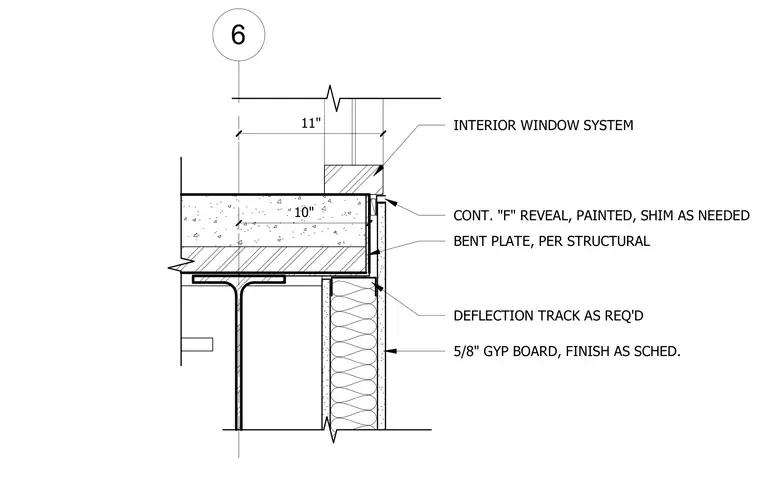

An interior window system bears on a steel beam assembly featuring a continuous bent plate per structural requirements and shims as needed. A continuous painted F-reveal abuts the window system. Below, a deflection track is installed as required, supporting five-eighths-inch gypsum board finished per schedule.
6 10" 5/8" GYP BOARD, FINISH AS SCHED. DEFLECTION TRACK AS REQ'D BENT PLATE, PER STRUCTURAL CONT. "F" REVEAL, PAINTED, SHIM AS NEEDED INTERIOR WINDOW SYSTEM 11"
