A steel pipe with a maximum diameter of twelve inches penetrates a partition with an annular space ranging from zero to one and seven-eighths inches. A five-eighths-inch minimum thick firestopping sealant is applied within the annulus. The assembly includes two-inch thick heavy density glass fiber pipe insulation with a one-half-inch minimum sealant bead at the point of contact. The installation complies with UL listing W-L-5029.

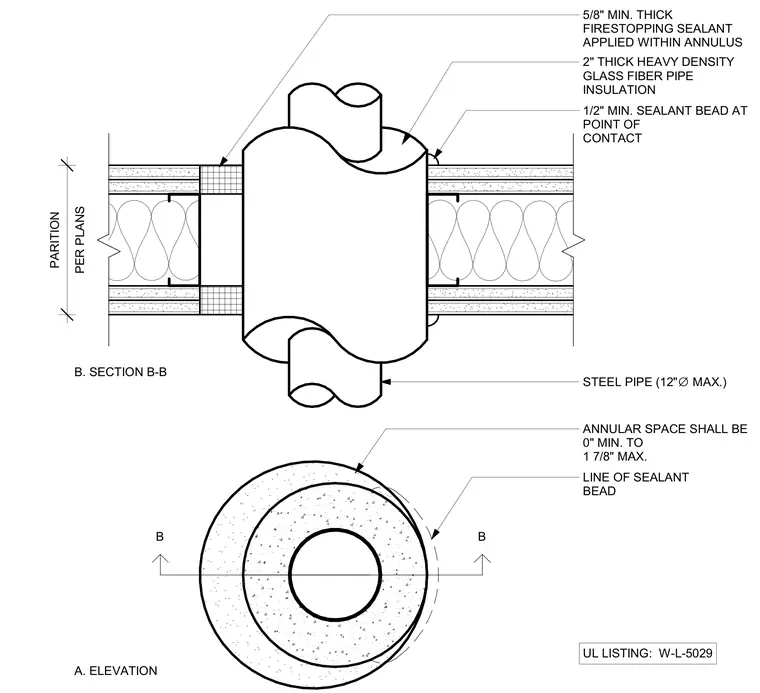

A. ELEVATION B. SECTION B-B 5/8" MIN. THICK FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS STEEL PIPE (12" ∅ MAX.) ANNULAR SPACE SHALL BE 0" MIN. TO 1 7/8" MAX. UL LISTING: W-L-5029 B B 2" THICK HEAVY DENSITY GLASS FIBER PIPE INSULATION 1/2" MIN. SEALANT BEAD AT POINT OF CONTACT LINE OF SEALANT BEAD PER PLANS PARITION
