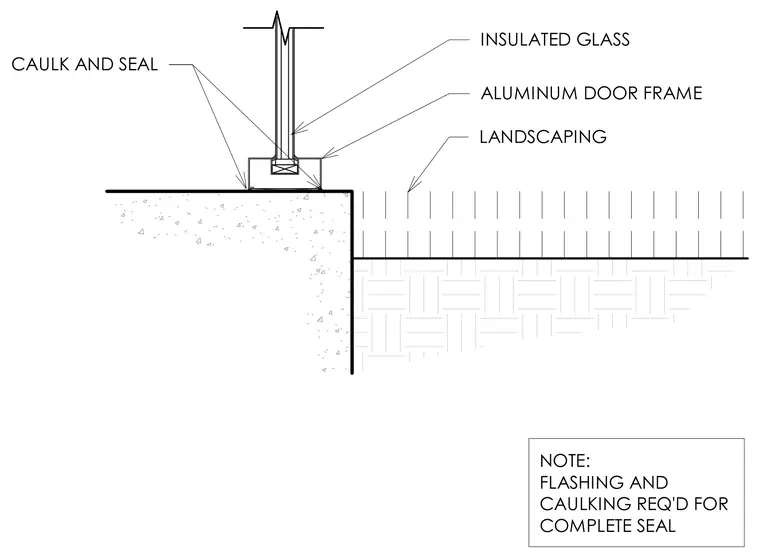

An aluminum door frame sits atop a concrete slab edge with insulated glass panels secured above. Caulking and sealant are applied around the base and frame joints to maintain weatherproofing against adjacent exterior landscaping. Flashing and caulking are required for a complete seal.
INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
