Architectural · A-SJG6M

Accessible Parking Signage and Post Detail

Elements

Connections

About this detail

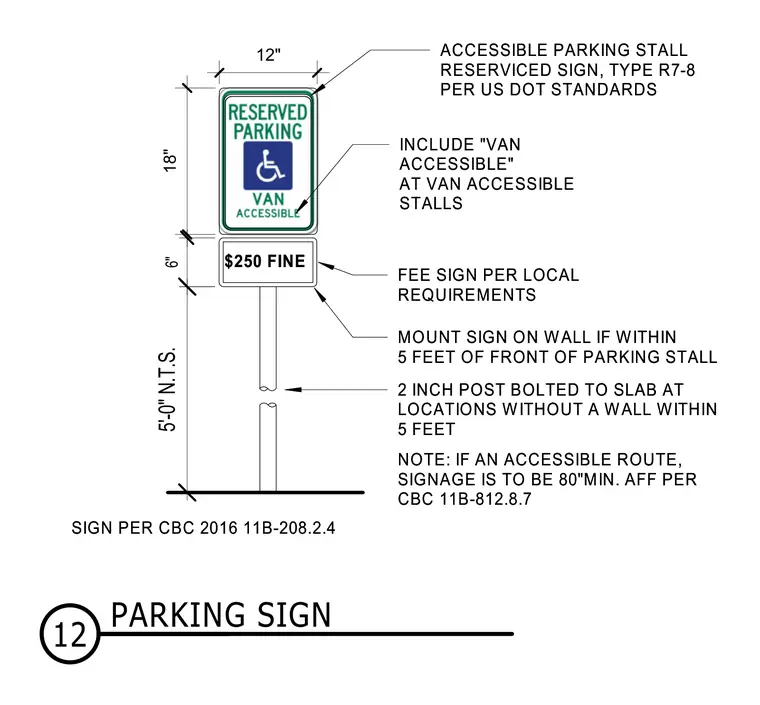

An accessible parking sign assembly featuring an eighteen by twelve inch Type R7-8 reserved parking sign per United States Department of Transportation standards, complete with van accessible wording where applicable and a six by twelve inch fee sign per local requirements. The assembly mounts directly to an adjacent wall if within five feet of the front of the parking stall, or uses a two inch post bolted to the concrete slab at locations without a nearby wall. Signage is positioned at a minimum of eighty inches above finished floor when located along an accessible route per California Building Code requirements.
