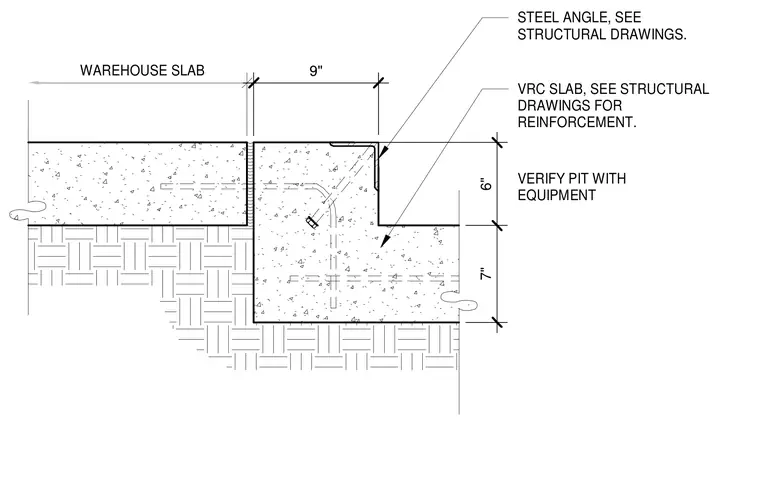

A vertical reciprocating conveyor pit edge transitions into the adjacent warehouse slab with a nine-inch separation. A steel angle protects the concrete corner of the pit slab, which features a six-inch upper recess and a seven-inch lower thickness. Reinforcement for the concrete slabs and exact pit dimensions are coordinated with structural drawings and equipment specifications.
VERIFY PIT WITH EQUIPMENT VRC SLAB, SEE STRUCTURAL DRAWINGS FOR REINFORCEMENT. STEEL ANGLE, SEE STRUCTURAL DRAWINGS. WAREHOUSE SLAB 7" 6" 9"
