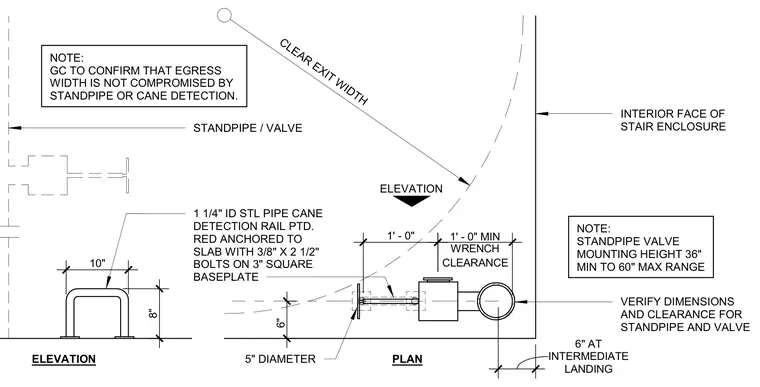

A standpipe valve is positioned near the interior face of a stair enclosure maintaining required wrench and egress clearances. A painted red one and one-quarter inch inside diameter steel pipe cane detection rail is anchored to the slab using three-eighths by two and one-half inch bolts on a three-inch square base plate. The standpipe valve maintains a mounting height range of thirty-six inches minimum to sixty inches maximum. General contractor verification is required to confirm that egress width is not compromised by the standpipe or cane detection assembly.
1' - 0" CLEARANCE 1' - 0" MIN WRENCH 6" 5" DIAMETER VERIFY DIMENSIONS AND CLEARANCE FOR STANDPIPE AND VALVE INTERIOR FACE OF STAIR ENCLOSURE CLEAR EXIT WIDTH LANDING 6" AT INTERMEDIATE PLAN 8" 10" ELEVATION ELEVATION NOTE: STANDPIPE VALVE MOUNTING HEIGHT 36" MIN TO 60" MAX RANGE NOTE: GC TO CONFIRM THAT EGRESS WIDTH IS NOT COMPROMISED BY STANDPIPE OR CANE DETECTION. 1 1/4" ID STL PIPE CANE DETECTION RAIL PTD. RED ANCHORED TO SLAB WITH 3/8" X 2 1/2" BOLTS ON 3" SQUARE BASEPLATE STANDPIPE / VALVE
