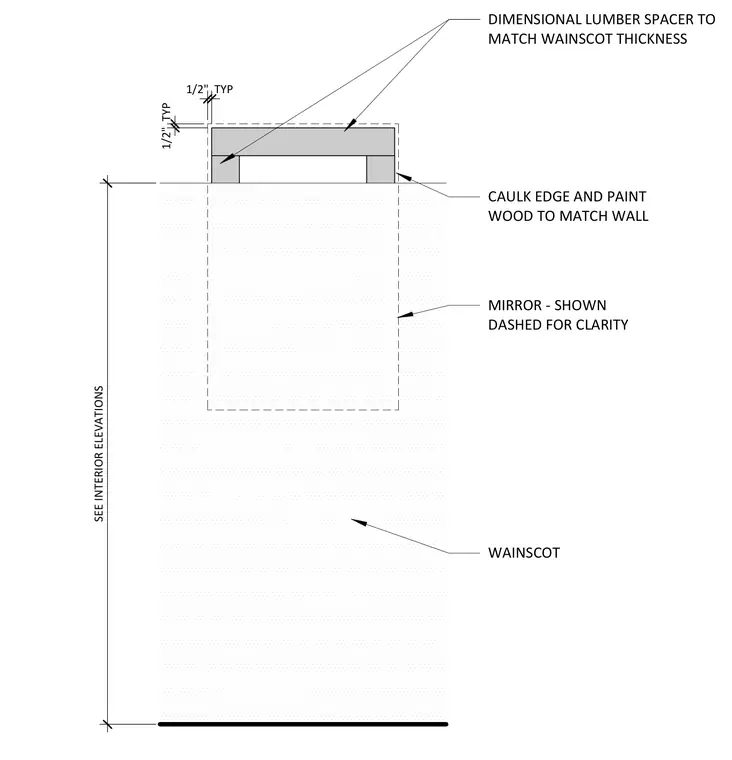

A dimensional lumber spacer matches the thickness of the wall wainscot to properly align the mirror. The mirror is mounted with a typical one-half-inch offset clearance at the edges. Edges are caulked and the wood is painted to match the surrounding wall finish. The mirror is dashed for clarity over the wainscot surface.
SEE INTERIOR ELEVATIONS 1/2" TYP 1/2" TYP MIRROR - SHOWN DASHED FOR CLARITY DIMENSIONAL LUMBER SPACER TO MATCH WAINSCOT THICKNESS CAULK EDGE AND PAINT WOOD TO MATCH WALL WAINSCOT
