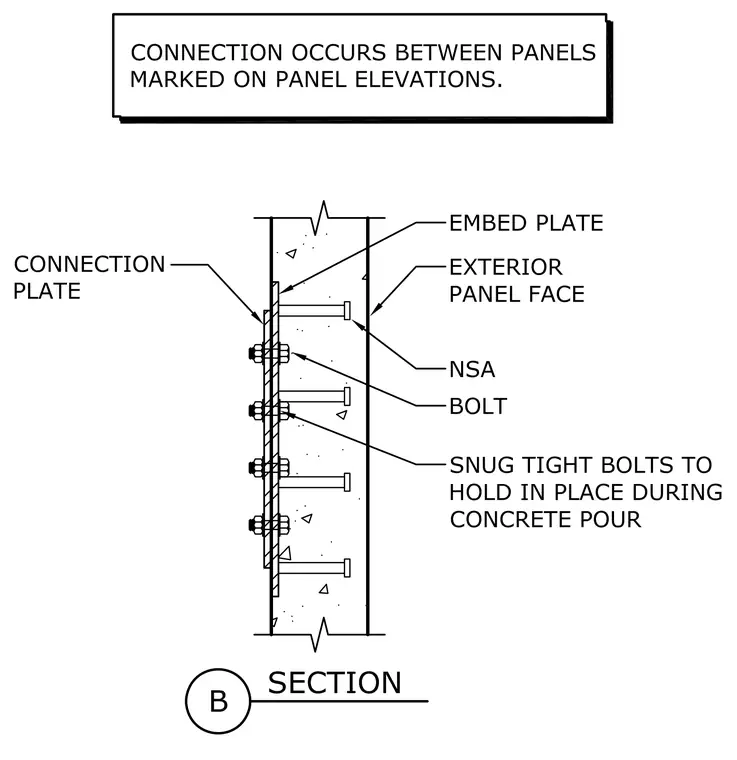

Precast concrete panels connect using an embed plate anchored into the concrete with Nelson studs or similar headed anchors. A matching connection plate spans between the panels and is secured with through-bolts. The bolts are snug tight to hold the plates in place during the concrete pour.
