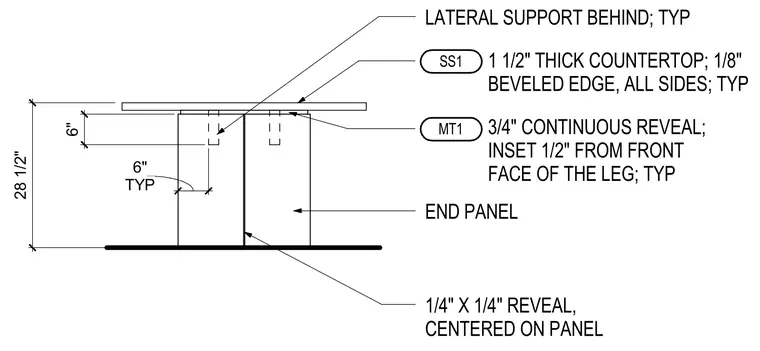

The assembly features a one and one-half inch thick countertop with a one-eighth inch beveled edge on all typical sides, supported by vertical end panels. Each end panel incorporates a three-quarter inch continuous reveal inset one-half inch from the front face and a centered one-quarter inch by one-quarter inch reveal. Lateral supports are positioned behind the legs at six inches from the top. The total height from the base to the top of the countertop is twenty-eight and one-half inches.
SS1 1 1/2" THICK COUNTERTOP; 1/8" BEVELED EDGE, ALL SIDES; TYP 1/4" X 1/4" REVEAL, CENTERED ON PANEL END PANEL 28 1/2" 6" TYP 6" MT1 3/4" CONTINUOUS REVEAL; INSET 1/2" FROM FRONT FACE OF THE LEG; TYP LATERAL SUPPORT BEHIND; TYP
