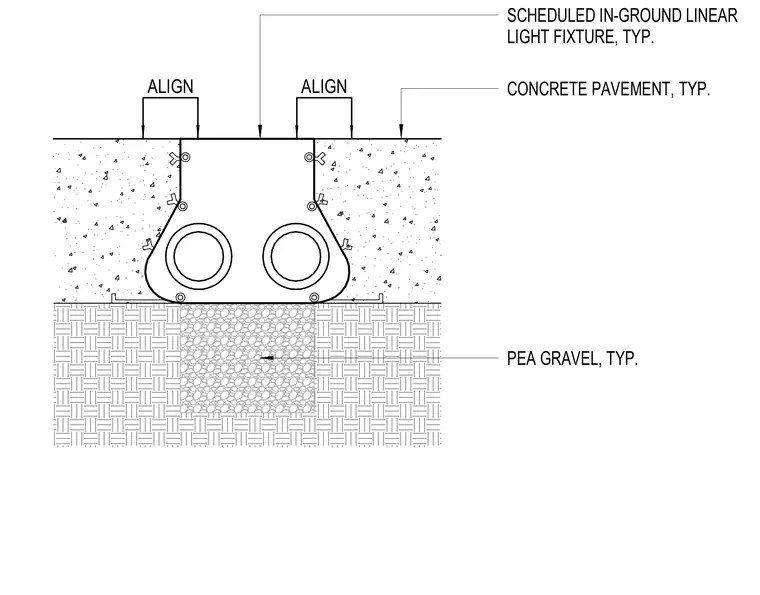

An in-ground linear light fixture is set flush with the top surface of a typical concrete pavement slab. The fixture housing is embedded directly in the concrete and bedded over a layer of typical pea gravel.
ALIGN ALIGN SCHEDULED IN-GROUND LINEAR LIGHT FIXTURE, TYP. CONCRETE PAVEMENT, TYP. PEA GRAVEL, TYP.
