Exterior Handrail Transitions and Corner Details

Materials

weld

Elements

Columns Walls Railings / Guards

Connections

Welded Connection Rebar Splice / Development

About this detail

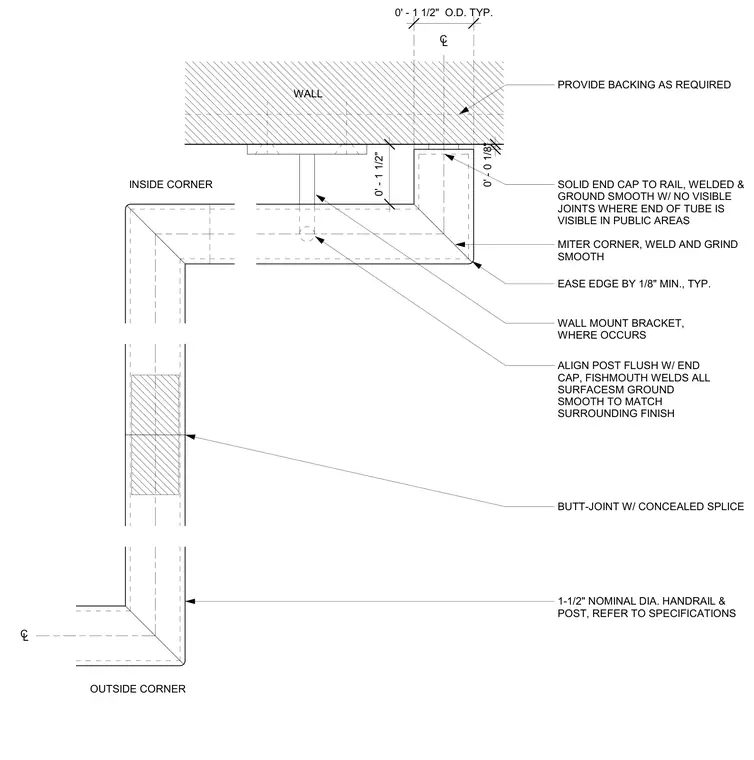

This plan detail shows exterior handrail and post transitions including inside corners, outside corners, and wall-mounted brackets supporting a one-and-a-half-inch nominal diameter handrail. Solid end caps are welded to the rail and ground smooth with no visible joints in public areas, while mitered corners are fully welded and ground smooth with edges eased by one-eighth inch minimum. Wall mount brackets occur where indicated with required backing inside the wall assembly. Posts align flush with end caps using fishmouth welds on all surfaces, and straight runs connect via butt-joints with concealed splices.
