A fire or smoke damper sleeve penetrates a metal stud partition or a concrete or CMU wall. The damper sleeve connects to the surrounding wall assembly using metal L-angle attachments with a one-inch minimum overlap. A breakaway connection is utilized at the sleeve interface to allow the ductwork to detach during a fire event without compromising the integrity of the rated wall assembly. Gypsum board finishes over metal studs are detailed per partition type schedules.

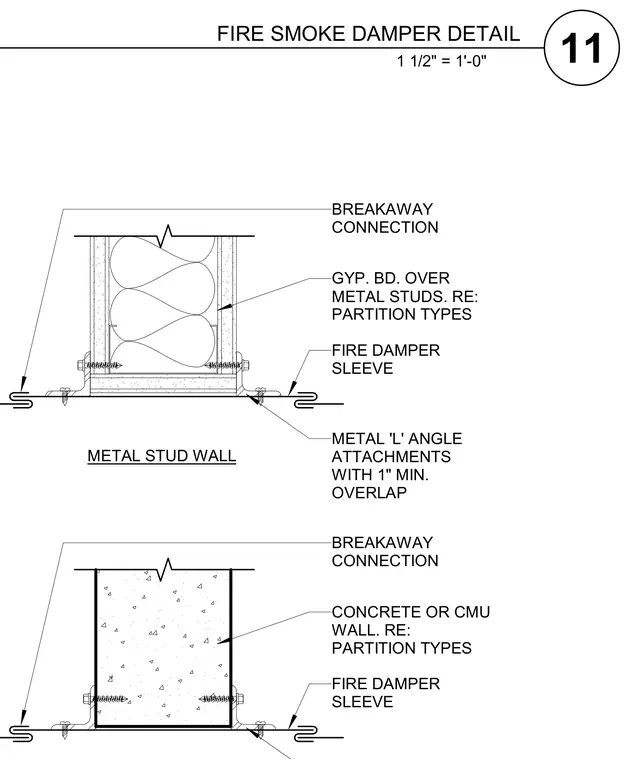

GYP. BD. OVER METAL STUDS. RE: PARTITION TYPES FIRE DAMPER SLEEVE BREAKAWAY CONNECTION METAL STUD WALL CONCRETE OR CMU WALL. RE: PARTITION TYPES FIRE DAMPER SLEEVE BREAKAWAY CONNECTION METAL 'L' ANGLE ATTACHMENTS WITH 1" MIN. OVERLAP 1 1/2" = 1'-0" 11 FIRE SMOKE DAMPER DETAIL
