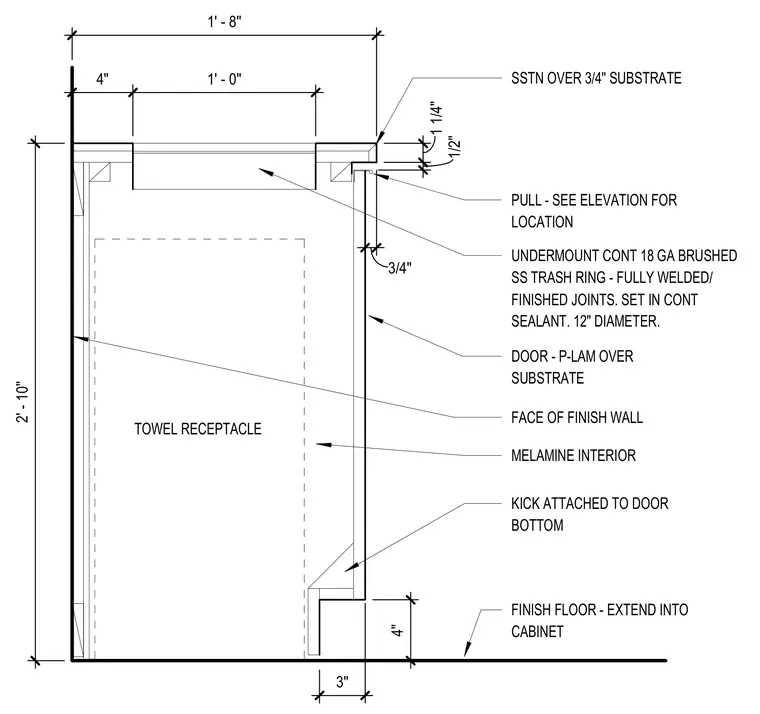

This built-in cabinet assembly features a stainless steel countertop over a three-quarter-inch substrate, extending past the face of the finish wall. An undermount continuous eighteen-gauge brushed stainless steel trash ring of twelve-inch diameter is fully welded with finished joints and set in continuous sealant. The cabinet door is constructed of plastic laminate over a substrate, paired with a pull hardware item located per elevation and a kick attached to the door bottom. The cabinet interior utilizes a melamine finish, set above a finish floor that extends into the cabinet base.
S S T N O V E R 3 / 4 " S U B S T R A T E F I N I S H F L O O R - E X T E N D I N T O C A B I N E T D O O R - P - L A M O V E R S U B S T R A T E F A C E O F F I N I S H W A L L M E L A M I N E I N T E R I O R 2 ' - 1 0 " T O W E L R E C E P T A C L E 3 " K I C K A T T A C H E D T O D O O R B O T T O M P U L L - S E E E L E V A T I O N F O R L O C A T I O N U N D E R M O U N T C O N T 1 8 G A B R U S H E D S S T R A S H R I N G - F U L L Y W E L D E D / F I N I S H E D J O I N T S . S E T I N C O N T S E A L A N T . 1 2 " D I A M E T E R . 4 " 1 / 2 "1 1 / 4 " 1 ' - 8 " 1 ' - 0 " 4 " 3 / 4 "
