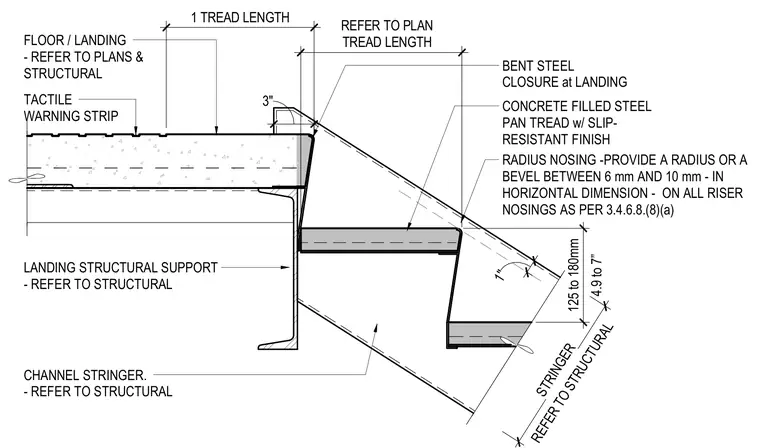

Concrete-filled steel pan treads with a slip-resistant finish connect to a channel stringer and landing structural support. A bent steel closure plate seals the junction at the landing. A tactile warning strip is embedded in the concrete floor landing. Riser nosings include a radius or bevel between six millimeters and ten millimeters in horizontal dimension.
BENT STEEL CLOSURE at LANDING LANDING STRUCTURAL SUPPORT - REFER TO STRUCTURAL CHANNEL STRINGER. - REFER TO STRUCTURAL REFER TO STRUCTURAL STRINGER 4.9 to 7” 125 to 180mm CONCRETE FILLED STEEL PAN TREAD w/ SLIP- RESISTANT FINISH TACTILE WARNING STRIP 1" 1 TREAD LENGTH 3" FLOOR / LANDING - REFER TO PLANS & STRUCTURAL REFER TO PLAN TREAD LENGTH RADIUS NOSING -PROVIDE A RADIUS OR A BEVEL BETWEEN 6 mm AND 10 mm - IN HORIZONTAL DIMENSION - ON ALL RISER NOSINGS AS PER 3.4.6.8.(8)(a)
