Architectural · A-SH524

Fire Extinguisher Cabinet

Materials

Elements

Partitions Insulation Millwork / Casework Roof / Floor Openings

About this detail

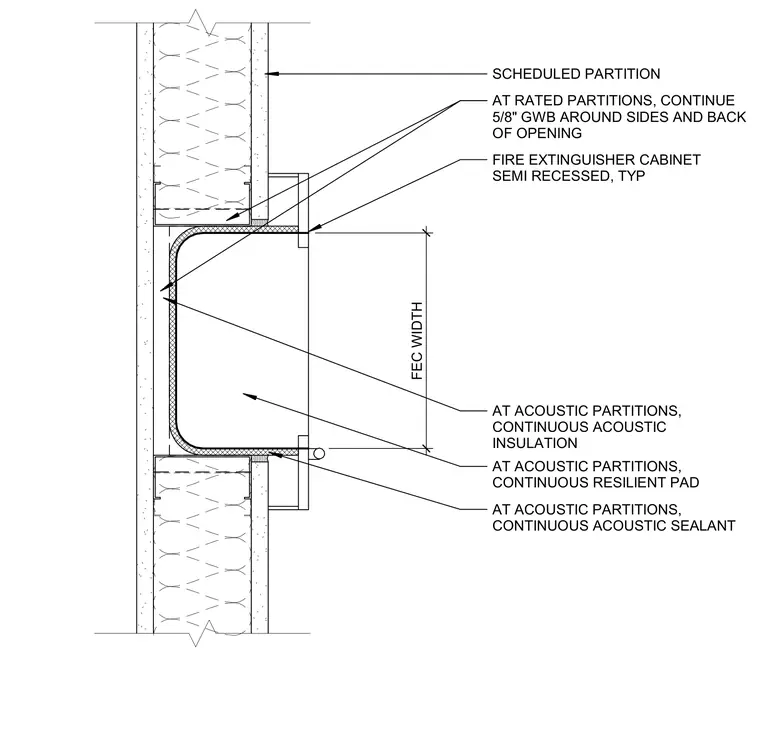

A semi-recessed fire extinguisher cabinet is installed within a scheduled gypsum wallboard partition, maintaining a typical fire extinguisher cabinet width opening. At rated partitions, five-eighths-inch gypsum wallboard continues around the sides and back of the opening. At acoustic partitions, continuous acoustic insulation fills the cavity behind the cabinet, backed by a continuous resilient pad and continuous acoustic sealant.
