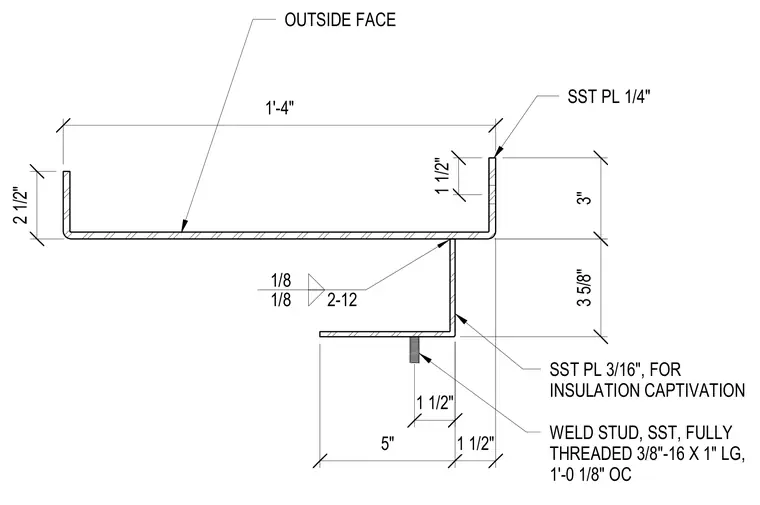

A stainless steel plate profile features an overall width of one foot four inches with upward-turned edges measuring two and one-half inches and three inches respectively. A three-sixteenth-inch stainless steel plate for insulation captivation is welded beneath the main flange with one-eighth-inch fillet welds spaced at two-twelve intervals. Fully threaded stainless steel weld studs measuring three-eighths-inch by sixteen UNC by one inch long project downward from the lower horizontal leg at one foot zero and one-eighth inches on center.
1'-4" 3 5/8" 2 1/2" 3" 5" 1 1/2" 1/8 2-12 1/8 1 1/2" OUTSIDE FACE SST PL 3/16", FOR INSULATION CAPTIVATION SST PL 1/4" 1 1/2" WELD STUD, SST, FULLY THREADED 3/8"-16 X 1" LG, 1'-0 1/8" OC
