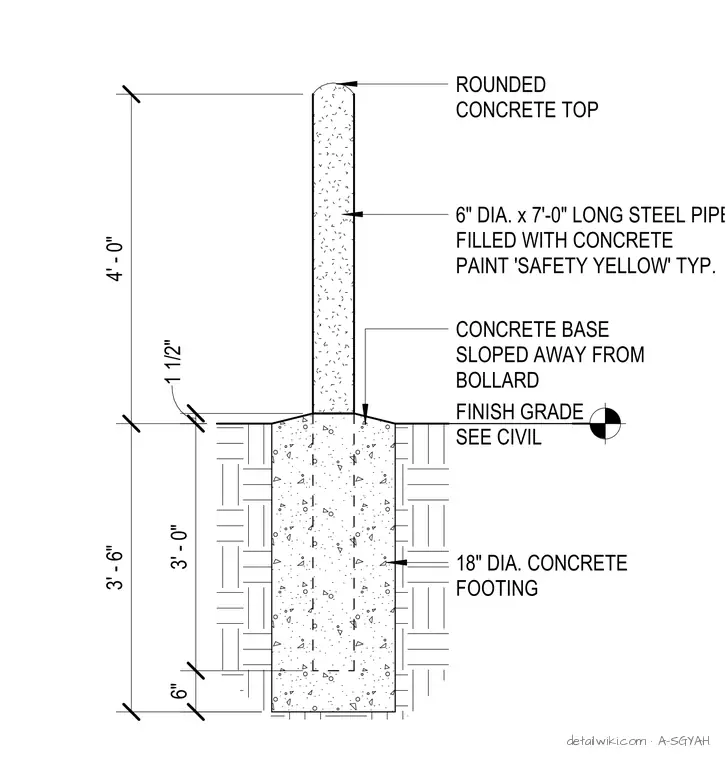

This assembly consists of a six-inch diameter steel pipe, seven feet in total length, which is filled with concrete and finished with a rounded concrete top. The pipe is painted safety yellow and is embedded into an eighteen-inch diameter concrete footing. A concrete base is formed at the surface, sloped away from the bollard to promote drainage at the finish grade.
Text on the drawing
1 1/2" 3' - 0" 6" 4' - 0" 3' - 6" 18" DIA. CONCRETE FOOTING ROUNDED CONCRETE TOP 6" DIA. x 7'-0" LONG STEEL PIPE FILLED WITH CONCRETE PAINT 'SAFETY YELLOW' TYP. CONCRETE BASE SLOPED AWAY FROM BOLLARD FINISH GRADE SEE CIVIL
