Ribbon Window Sill at Concrete Tilt-Up Panel

Materials

Elements

About this detail

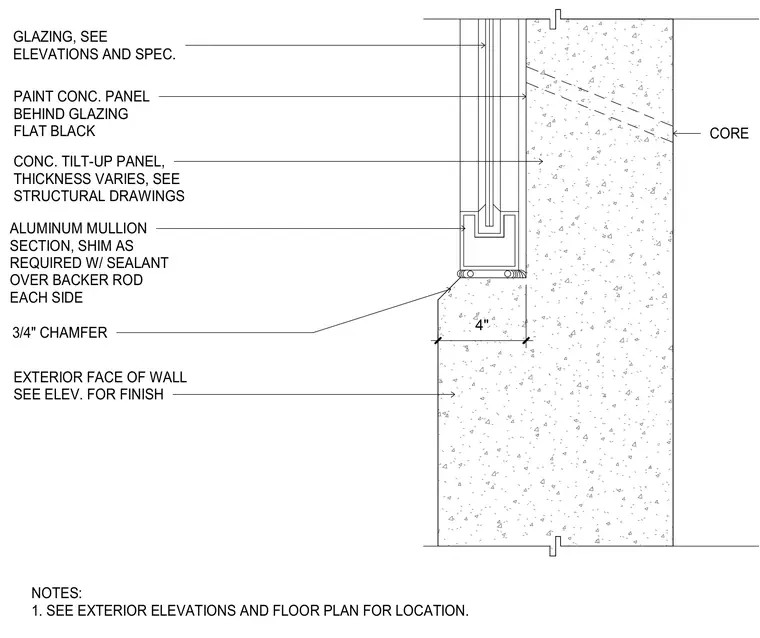

An aluminum mullion section sits atop a concrete tilt-up panel with a three-quarter-inch chamfer at the exterior edge, shimmed as required with sealant over backer rod on each side. Glazing is installed within the aluminum framing, while the concrete panel behind the glazing is painted flat black on the exterior face. The concrete tilt-up panel thickness varies per structural drawings, and the exterior face of the wall receives a finish per elevations.
