The gate assembly is constructed with four-inch square steel tube jambs supported by eighteen-inch diameter by two-foot-deep concrete jamb post footings. Six-inch by eighteen-inch by three-sixteenths-inch steel plates are welded to the frame to receive gate hardware and future electrical strikes, intercoms, or card readers. A steel receptor channel spans the full height of the gate and is welded to the fence post. The installation sits over a concrete walk and a concrete footing for the gate track, with push and pull hardware and a self-closer added per the door schedule.

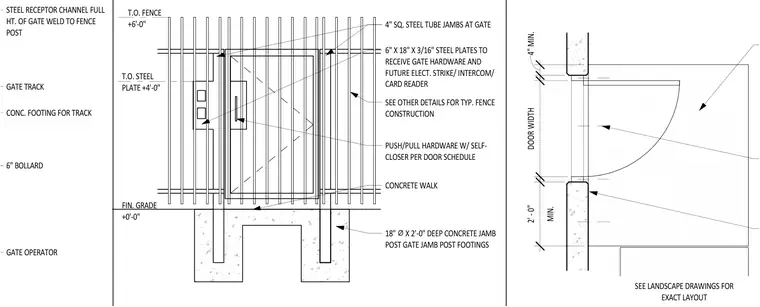

DOOR WIDTH SEE LANDSCAPE DRAWINGS FOR EXACT LAYOUT 4" MIN. MIN. 2' - 0" 4" SQ. STEEL TUBE JAMBS AT GATE 6" X 18" X 3/16" STEEL PLATES TO RECEIVE GATE HARDWARE AND FUTURE ELECT. STRIKE/ INTERCOM/ CARD READER SEE OTHER DETAILS FOR TYP. FENCE CONSTRUCTION 18" ⌀ X 2'-0" DEEP CONCRETE JAMB POST GATE JAMB POST FOOTINGS PUSH/PULL HARDWARE W/ SELF- CLOSER PER DOOR SCHEDULE CONCRETE WALK T.O. FENCE +6'-0" T.O. STEEL PLATE +4'-0" FIN. GRADE +0'-0" GATE TRACK CONC. FOOTING FOR TRACK 6" BOLLARD GATE OPERATOR STEEL RECEPTOR CHANNEL FULL HT. OF GATE WELD TO FENCE POST
