Structural · A-SGPHG

Railing Nested Blocking

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Ramps Railings / Guards Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Welded Connection

About this detail

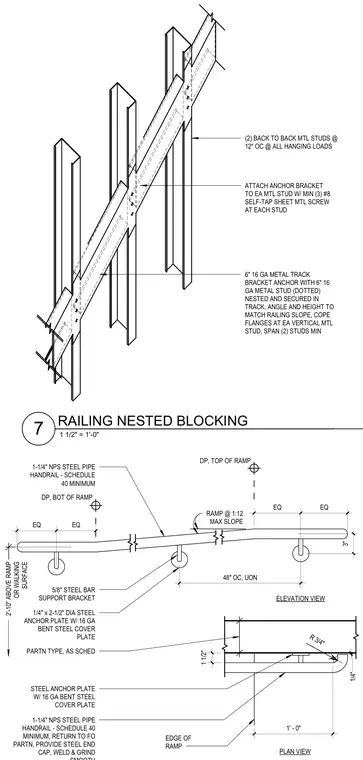

A cold-formed steel backing assembly supports a handrail at a ramp with a maximum slope of one to twelve. The assembly incorporates two back-to-back metal studs spaced at twelve inches on center for hanging loads, with an anchor bracket attached to each metal stud using a minimum of three number eight self-tapping sheet metal screws per stud. A six-inch sixteen-gauge metal track bracket anchor with a six-inch sixteen-gauge metal stud is nested and secured in the track, angled and cut to match the railing slope with coped flanges at each vertical metal stud spanning a minimum of two studs. The handrail consists of a one-and-one-quarter-inch nominal pipe size schedule forty minimum steel pipe supported by five-eighths-inch steel bar support brackets on a quarter-inch by two-and-a-half-inch diameter steel anchor plate with a sixteen-gauge bent steel cover plate.
