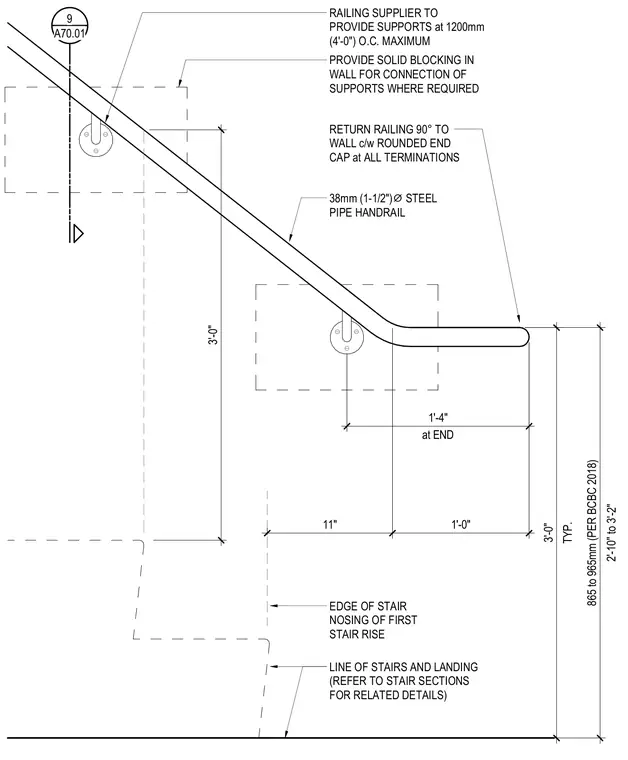

A thirty-eight millimeter diameter steel pipe handrail mounts to wall supports spaced at a maximum of one thousand two hundred millimeters on center. The handrail terminates with a ninety-degree return to the wall complete with a rounded end cap. Solid blocking is provided within the wall construction at each support location as required. The top of the handrail is positioned between two feet ten inches and three feet two inches above the stair nosing, complying with building code requirements.
RETURN RAILING 90° TO WALL c/w ROUNDED END CAP at ALL TERMINATIONS RAILING SUPPLIER TO PROVIDE SUPPORTS at 1200mm (4'-0") O.C. MAXIMUM EDGE OF STAIR NOSING OF FIRST STAIR RISE LINE OF STAIRS AND LANDING (REFER TO STAIR SECTIONS FOR RELATED DETAILS) 38mm (1-1/2") ⌀ STEEL PIPE HANDRAIL 11" 1'-0" 3'-0" PROVIDE SOLID BLOCKING IN WALL FOR CONNECTION OF SUPPORTS WHERE REQUIRED at END 1'-4" 2'-10" to 3'-2" 865 to 965mm (PER BCBC 2018) A70.01 9 TYP. 3'-0"
