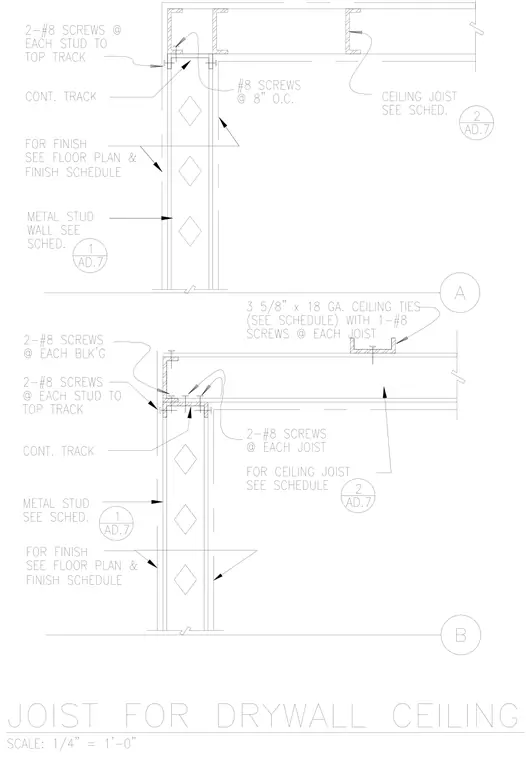

Cold-formed metal framing details showing ceiling joists bearing on continuous top tracks of metal stud walls. Two number eight screws secure each stud to the top track. Additional details include three and five-eighths inch by eighteen gauge ceiling ties fastened with one number eight screw at each joist, and number eight screws spaced at eight inches on center. Wall finishes and metal stud sizes are scheduled per plans.
