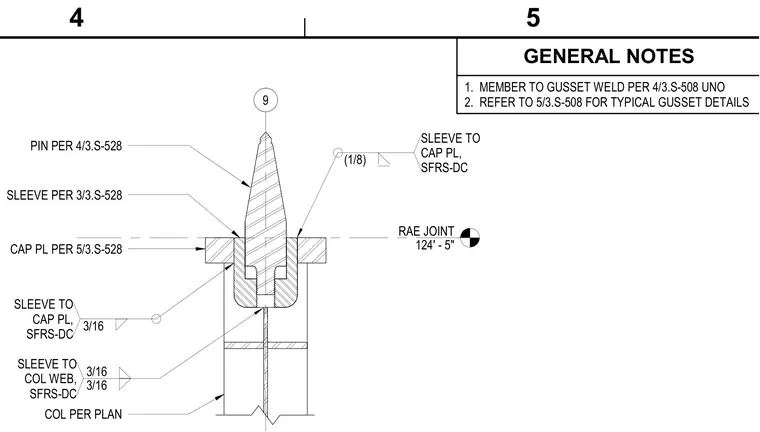

This structural connection detail features a pin secured by a sleeve and cap plate assembly atop a column web. The sleeve is fastened to the cap plate with three-sixteenths inch welds and connected to the column web using three-sixteenths inch fillet welds. A pin detailed per sheet S-528 fits into the sleeve assembly mounted over the column layout. General notes dictate that member to gusset welds follow standard detailing unless otherwise noted.
RAE JOINT 124' - 5" 9 COL PER PLAN (1/8) SLEEVE TO CAP PL, SFRS-DC 3/16 SLEEVE TO CAP PL, SFRS-DC 3/16 3/16 SLEEVE TO COL WEB, SFRS-DC CAP PL PER 5/3.S-528 SLEEVE PER 3/3.S-528 PIN PER 4/3.S-528 4 5 GENERAL NOTES 1. MEMBER TO GUSSET WELD PER 4/3.S-508 UNO 2. REFER TO 5/3.S-508 FOR TYPICAL GUSSET DETAILS
