Architectural · A-SGBQH

Section Detail - Stair #5 - Sloping Glazing - Head

Materials

Aluminum Glass / Glazing Metal (misc.)Steel Timber / Wood

Elements

Beams Curtain Walls Facades / Cladding Stairs Walls Waterproofing / Flashing Windows

Connections

Timber / Mass-Timber Connection

About this detail

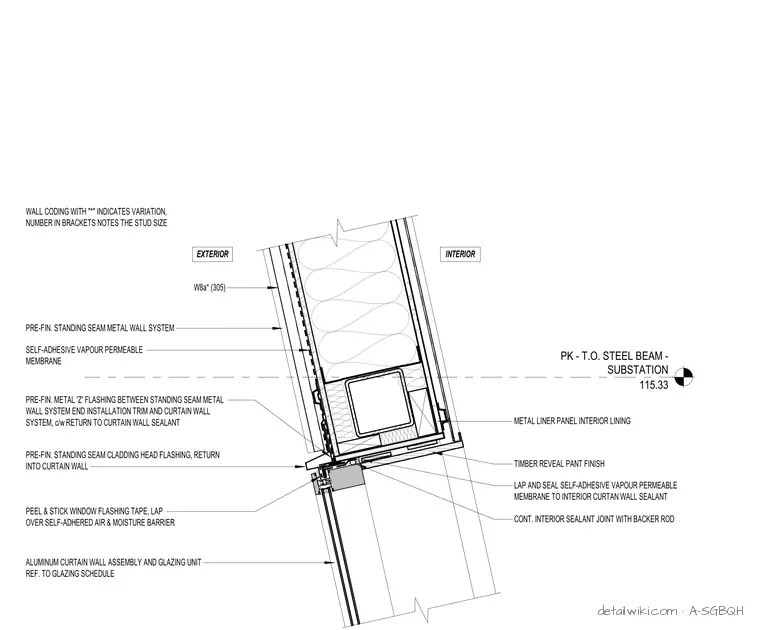

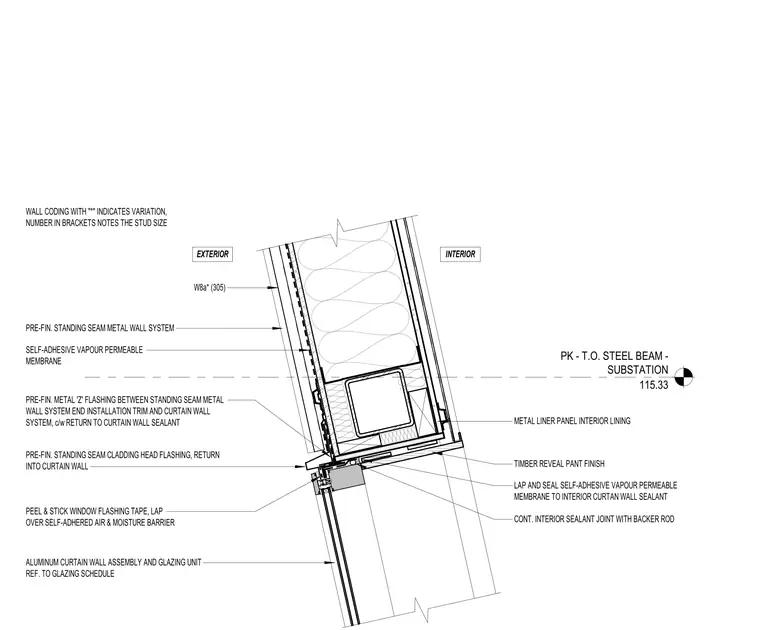

An aluminum curtain wall assembly and glazing unit meets a prefinished standing seam metal wall system at the head condition. A prefinished metal Z flashing bridges between the standing seam wall system end installation trim and the curtain wall system, complete with a return to the curtain wall sealant. A prefinished standing seam cladding head flashing returns into the curtain wall. Peel and stick window flashing tape laps over the self-adhered air and moisture barrier at the transition. A self-adhesive vapour permeable membrane is applied beneath the exterior cladding. The interior side features a metal liner panel interior lining, a timber reveal with paint finish, and a continuous interior sealant joint with backer rod.
