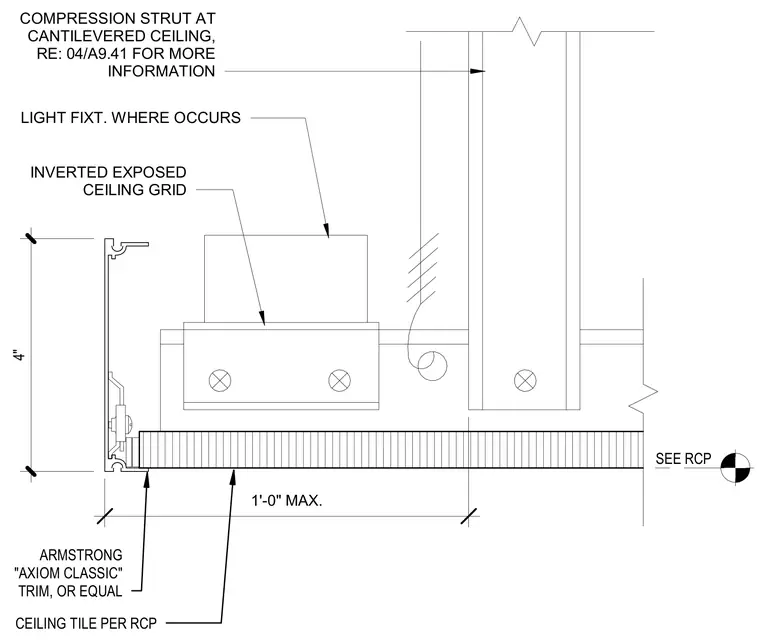

An Armstrong Axiom Classic perimeter trim or approved equal finishes the edge of an acoustical ceiling tile system. An inverted exposed ceiling grid supports the ceiling tile per the reflected ceiling plan. A compression strut occurs at the cantilevered ceiling condition with a maximum spacing of one foot zero inches. Light fixtures integrate into the assembly where indicated on the drawings.
SEE RCP ARMSTRONG "AXIOM CLASSIC" TRIM, OR EQUAL CEILING TILE PER RCP 4" LIGHT FIXT. WHERE OCCURS INVERTED EXPOSED CEILING GRID COMPRESSION STRUT AT CANTILEVERED CEILING, RE: 04/A9.41 FOR MORE INFORMATION 1'-0" MAX.
