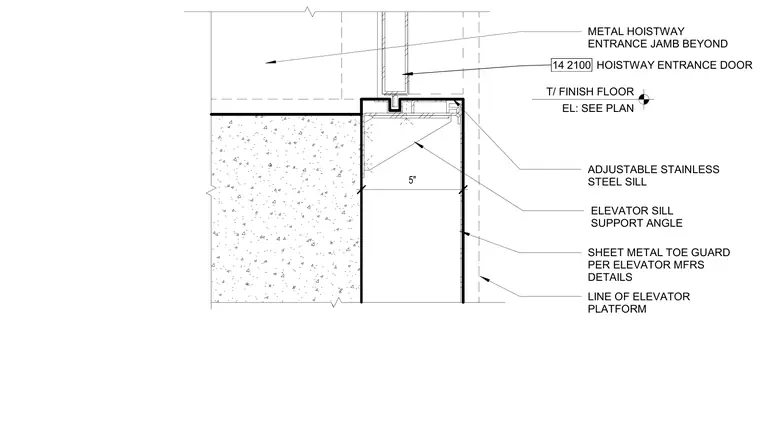

An adjustable stainless steel elevator sill bears on a structural steel elevator sill support angle anchored at the top of finish floor. A metal hoistway entrance door and entrance jamb align above the sill assembly. A sheet metal toe guard extends downward from the platform per the elevator manufacturer details behind the line of the elevator platform.
5" LINE OF ELEVATOR PLATFORM SHEET METAL TOE GUARD PER ELEVATOR MFRS DETAILS METAL HOISTWAY ENTRANCE JAMB BEYOND ADJUSTABLE STAINLESS STEEL SILL 14 2100 HOISTWAY ENTRANCE DOOR T/ FINISH FLOOR EL: SEE PLAN ELEVATOR SILL SUPPORT ANGLE
