Drapery Pocket and Wood Trim Detail at Wall

Materials

Elements

About this detail

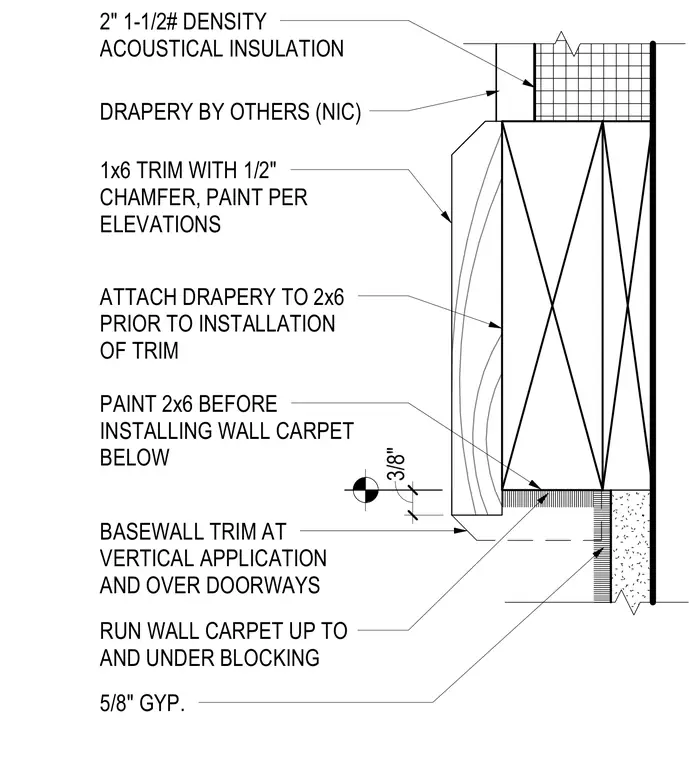

This wall detail shows a wood trim and drapery pocket assembly incorporating a two-by-six wood blocking member. The assembly features two-inch, one-and-a-half-pound density acoustical insulation installed above the blocking. A one-by-six wood trim piece with a half-inch chamfer is applied over the framing, with paint specified per elevations. The drapery, provided by others and not in contract, is attached directly to the two-by-six wood member prior to the installation of the trim. The two-by-six blocking is painted before installing wall carpet below, which runs up to and under the blocking. Gypsum board measuring five-eighths of an inch forms the adjacent wall surface.
