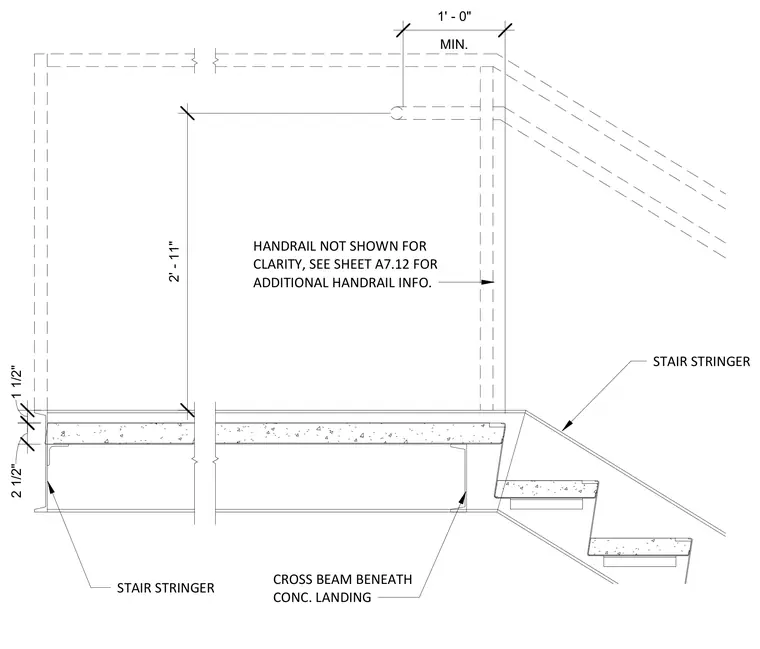

An interior concrete landing slab is supported by cross beams positioned beneath the landing, featuring an exterior stair stringer framing into the down flight. The stair stringer aligns with a minimum one-foot clearance zone. A cross beam is located directly beneath the concrete landing construction. Handrail components are omitted from this view for clarity, with additional reference provided on sheet A7.12.
MIN. 1' - 0" STAIR STRINGER CROSS BEAM BENEATH CONC. LANDING 1 1/2" 2 1/2" 2' - 11" HANDRAIL NOT SHOWN FOR CLARITY, SEE SHEET A7.12 FOR ADDITIONAL HANDRAIL INFO. STAIR STRINGER
