Existing Utility Piping and Cable Tray Coordination

About this detail

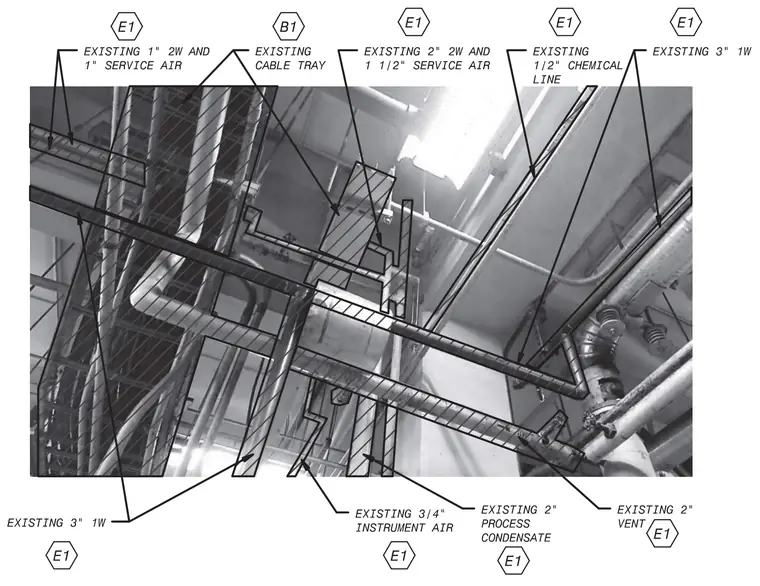

An existing industrial installation features multiple utility lines and a cable tray routed overhead. The layout includes existing 1-inch and 2-inch two-way service air lines alongside a 1.5-inch service air line, an existing 3/4-inch instrument air line, and a 1/2-inch chemical line. Process support includes an existing 2-inch process condensate line, an existing 2-inch vent, and 1-way water piping in 3-inch diameters. A cable tray runs parallel to the piping network through the overhead space.
