Three-and-five-eighths-inch metal studs attach to the structure above alongside five-eighths-inch Type X gypsum board extending to the structure above. The furring assembly applies to the interior side of an exterior wall assembly.

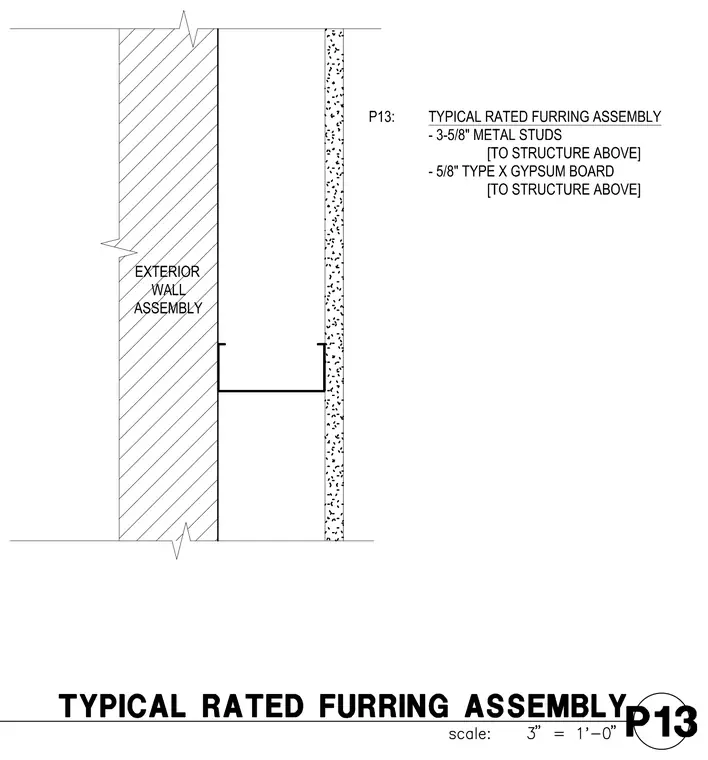

P13: TYPICAL RATED FURRING ASSEMBLY - 3-5/8" METAL STUDS [TO STRUCTURE ABOVE] - 5/8" TYPE X GYPSUM BOARD [TO STRUCTURE ABOVE] EXTERIOR WALL ASSEMBLY
