Electrical Switch and Device Alignment Detail

Elements

About this detail

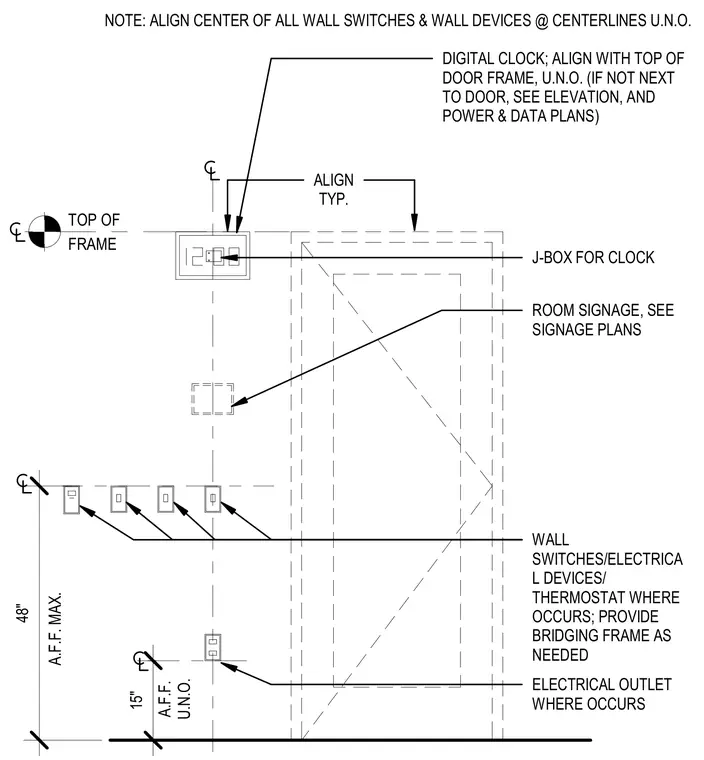

Wall switches, electrical devices, and thermostats align horizontally with each other and are positioned at forty-eight inches above finished floor maximum unless noted otherwise. Standard electrical outlets mount at fifteen inches above finished floor unless noted otherwise, while digital clocks and room signage align with the top of the adjacent door frame. Junction boxes are provided for clocks, and bridging framing is installed in walls as needed to support device boxes. All wall switches and devices align along vertical centerlines unless otherwise noted.
