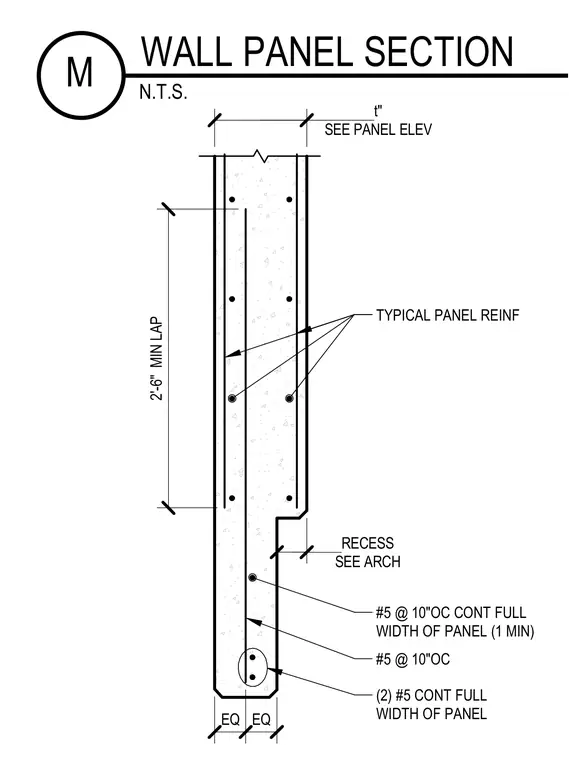

This concrete wall panel section details the vertical and horizontal reinforcement layout, including a recessed architectural profile at the face. The panel thickness is specified per the panel elevation, featuring typical panel reinforcement with a two-foot-six-inch minimum lap length. Additional reinforcement includes number five bars spaced at ten inches on center continuously across the full width of the panel, with two number five continuous bars at the base.
SEE PANEL ELEV t" TYPICAL PANEL REINF 2'-6" MIN LAP EQ EQ SEE ARCH RECESS #5 @ 10"OC CONT FULL WIDTH OF PANEL (1 MIN) #5 @ 10"OC (2) #5 CONT FULL WIDTH OF PANEL N.T.S. WALL PANEL SECTION M
